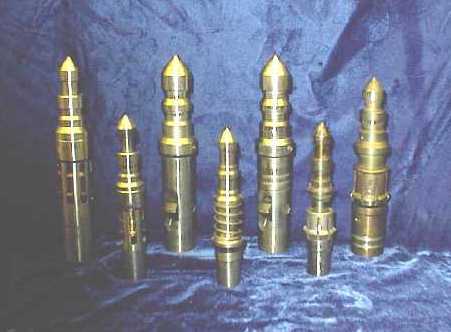

BST Latches

BST's 1" and 1˝" top latches are manufactured to meet the requirements of API Spec 11V1.

BK-2 is the industry standard latch for locking 1" valves into side pocket gas lift mandrels with 1" standard lock profiles.

K-1.0 replaces the BK-2 in highly deviated wells and other situations requiring soft-set latch capabilities.

RK is the industry standard for 1˝" latches used in side pocket gas lift mandrels using the "G" latch profile.

K-1.5 replaces the RK in highly deviated wells and other situations requiring soft-set latch capabilities.

R is a cam type latch for 1˝" valves used in MM, MME, and MMW side pocket mandrels.

RA is a cam type latch for 1˝" valves used in MMA style side pocket mandrels.

T-1.0 is a 1" soft-set collet style latch used with BST's reduced diameter Trimline™ side pocket mandrels with 1" pockets.

T-1.5 is a 1˝" soft-set collet style latch used with BST's reduced diameter Trimline™ side pocket mandrels with 1˝" pockets.

EBK-2 is a version of the BK-2 latch with a 3/8" longitudinal flow passage through the center of the latch.

KE-1.0 is a version of BST's K-1.0 soft-set latch with a 3/8" longitudinal flow passage through the center of the latch.

KE-1.5 is a version of BST's K-1.5 soft-set latch with a 3/8" longitudinal flow passage through the center of the latch.

BST can also manufacture other latch styles on a special order basis.

All products listed are currently available from BST Lift Systems.  Please contact us for details.
