 BST's

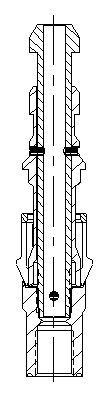

KE-1.0 wireline retrievable soft-set latch locks 1" valves and
accessories into any manufacturer's standard side pocket gas lift mandrels with
1" pockets that will accept a BK-2 or K-1.0 top latch.
The KE-1.0 has a 3/8" diameter longitudinal bore, allowing flow
through the center of the latch. This latch is ideal for use with
circulating or flow devices, and features an erosion resistant I.D. Specifications:
• Standard material is 17-4 PH
stainless steel, with Monel or Inconel optional. •
Has 3/8" diameter, erosion resistant center bore, ideal for circulating
valves, equalizing dummies, and other flow devices. •
Has 11/16"-16 UNS-2B threads to mate with all common 1" gas lift
valves. • Use 1¼" JK running
tool. • Use 1¼" JDC pulling tool.
|
