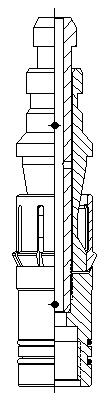

BST's KE-1.5 wireline retrievable soft-set latch locks 1" valves and accessories into any manufacturer's standard side pocket gas lift mandrels with 1" pockets that will accept an RK or K-1.5 top latch.

The KE-1.5 has a 3/8" diameter longitudinal  bore, allowing flow through the center of the latch.  This latch is ideal for use with circulating or flow devices, and features an erosion resistant I.D.

Specifications:

  Standard material is 17-4 PH stainless steel, with Monel or Inconel optional.

  Has 3/8" diameter, erosion resistant center bore, ideal for circulating valves, equalizing dummies, and other flow devices.

  Two O-rings on latch stop provide a debris barrier in the top of the mandrel latch tube.

  Standard 1-1/16" - 18 UNEF-2B threads mate with all 1" gas lift valves.

 Run using RK-1 wireline running tool.

  Pull using 1-5/8" JDS wireline pulling tool.
