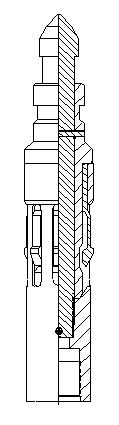

 BST's T-1.5 Trimline™ soft-set 1½" latch was designed for use in BST's reduced diameter Trimline™ Series side pocket gas lift mandrels and Spooler™ Series coiled tubing side pocket mandrels commonly used in super slimhole applications.

FEATURES:

  Latch is completely compatible with all BST "T" (Trimline™) style 1½" sidepocket gas lift mandrels and CTMA (Spooler™) style 1½" sidepocket gas lift mandrels .

  Running Tool: Standard RK-1.

  Pulling Tool: Standard 1-5/8" JDS.

  Standard material is 17-4 PH stainless steel; monel and other premium materials optional.

  Meets requirements of API Spec 11V1 and NACE MR-01-75.

  May be used with all standard 1½" gas lift valves and with BST's CTLV-1.5R Spooler™ series gas lift valves for BST's CTMA Spooler™ series coiled tubing side pocket mandrels.

  Soft-set design reduces jarring when running & pulling.

Full-round collet & shoulder increase latch strength & blowout resistance.

Contact BST Lift Systems for more information about our Spooler™ series coiled tubing side pocket gas lift mandrels, valves, and other CT equipment.
