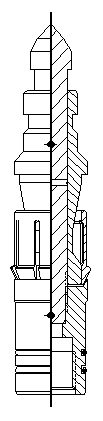

BST's K-1.5 soft set latch is used to lock 1" gas lift valves and other 1" devices into the valve pocket of MMG, MMRG, MMGE, TPG, SM-2, GLMG, MO-2, and similar side pocket mandrels.

Features:

  Advanced, soft-set design permits easy latching in highly deviated wells where jarring down with wireline is difficult.

  Standard material is 17-4 PH stainless steel, with monel and other premium materials optional.

  Two O-rings on latch stop provide a debris barrier in the top of the mandrel latch tube.

  Standard 1-1/16" - 18 UNEF-2B threads mate with all 1" gas lift valves.

 Run using RK-1 wireline running tool.

  Pull using 1-5/8" JDS wireline pulling tool.
